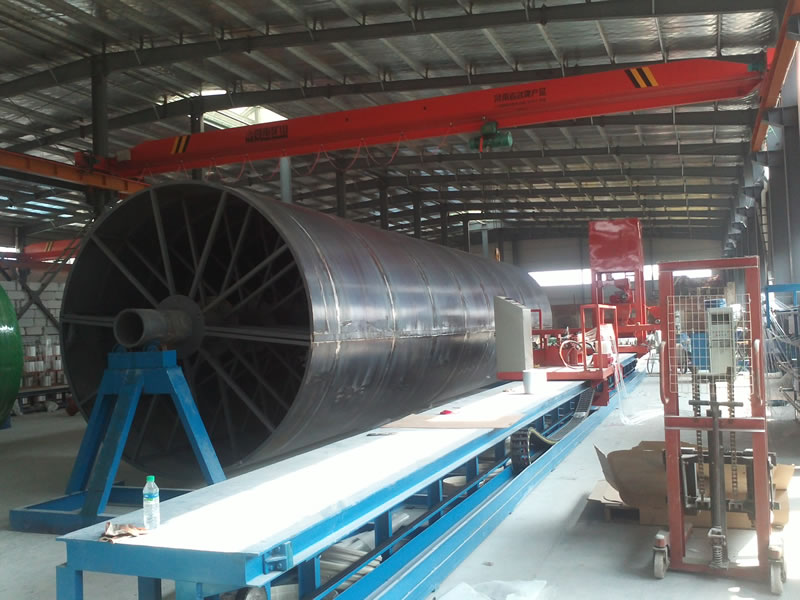

sep-iconIntegrated Prefabricated Pump Station Winding Machine

Product Name: DN1000-DN4000 integrated prefabricated pump station production line

Production line composition: winding machine, curing station, demoulding machine or collapsible mold

1. Pump station diameter: DN1000-4000 ( Special diameter can be customized )

2. Pump station length:  ≤14000mm

3. Main shaft rotation speed: 0~20rpm/min

4. Maximum roving-drawing speed: 55m/min

5. Yarn width:  200mm

6. Total installed capacity: 12KW

Integrated Prefabricated Pump Station Winding Machine
